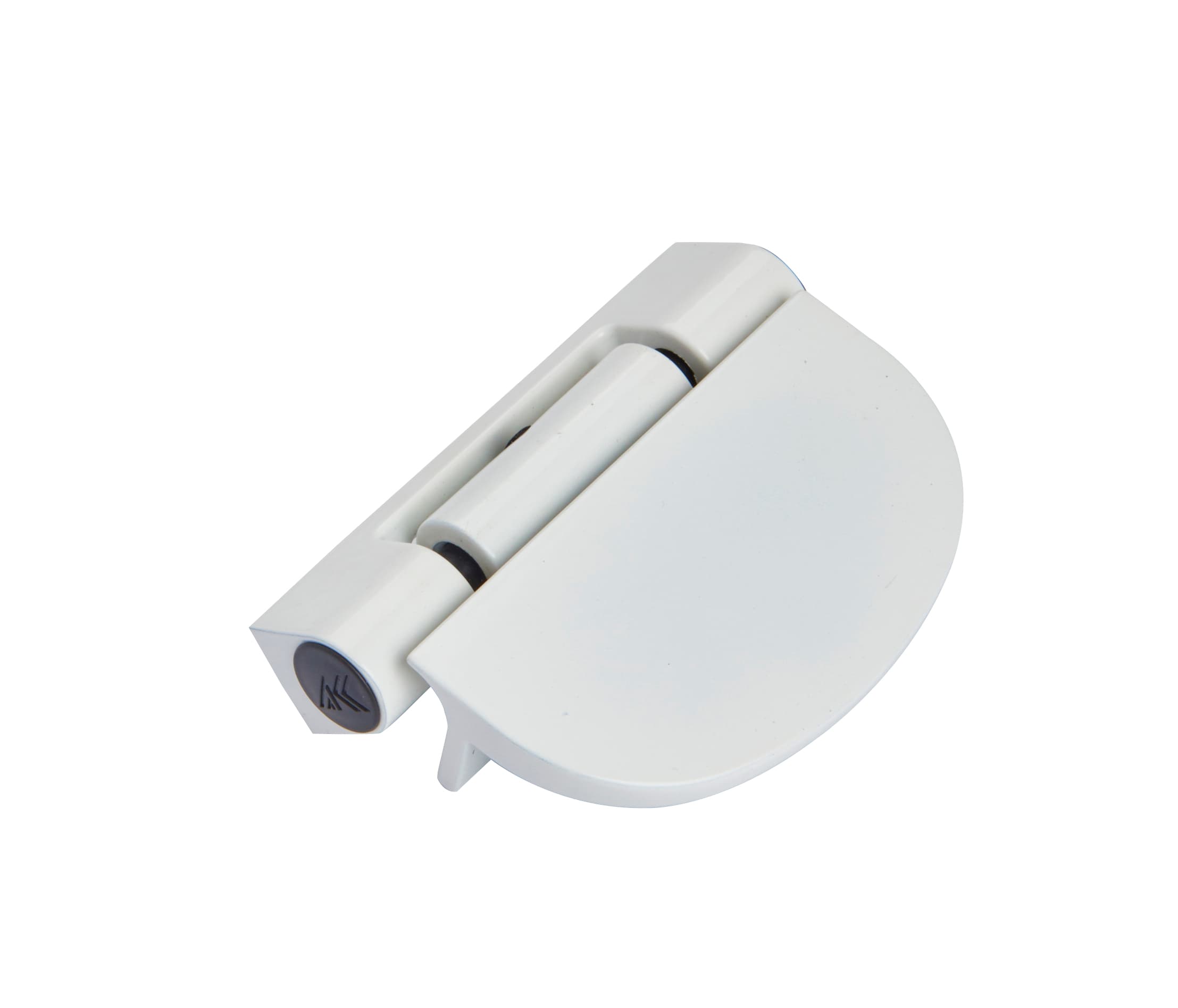

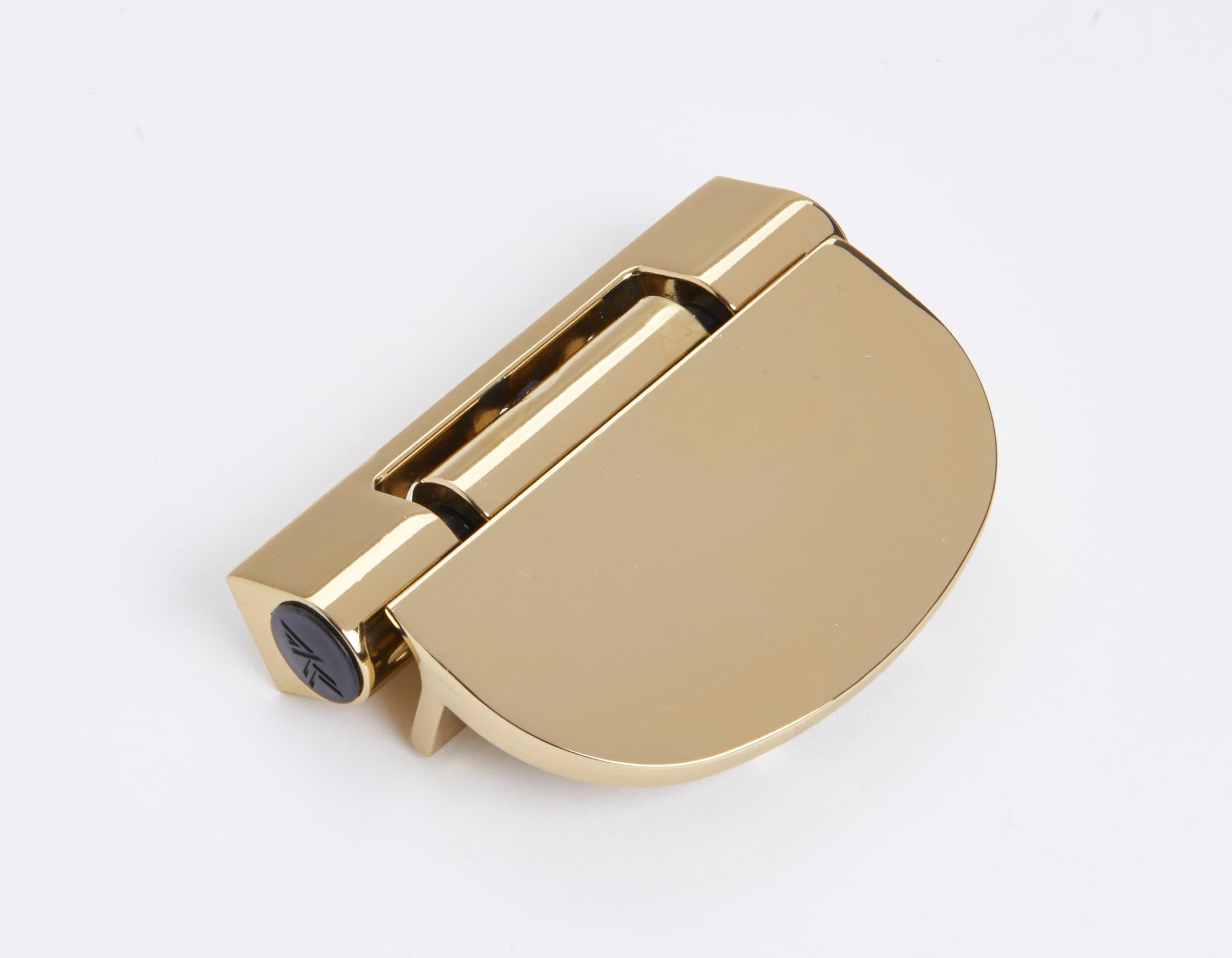

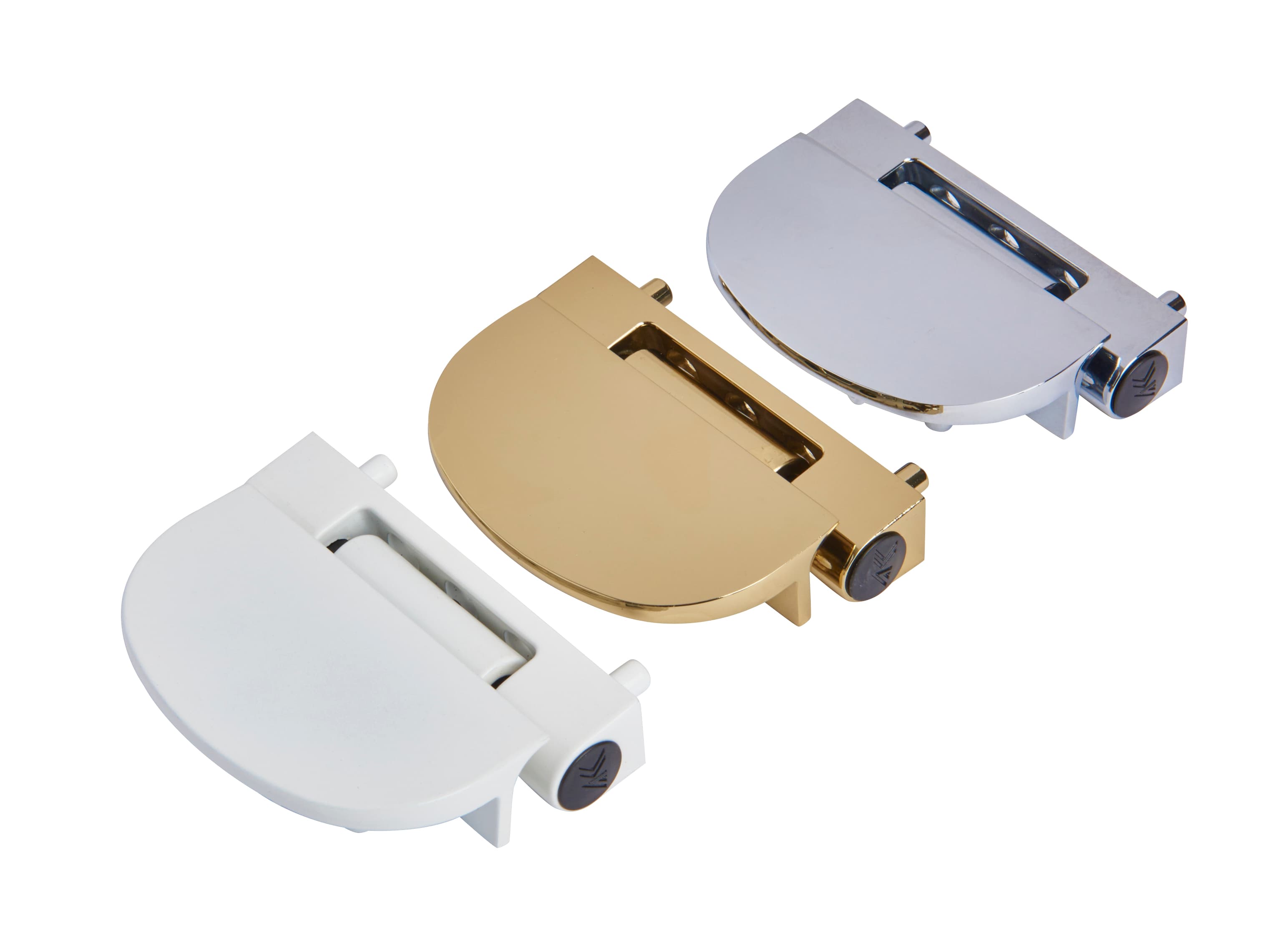

Captive Door Hinge
A high-quality captive door hinge designed for durability and ease of installation. Features zinc die-cast body with stainless steel pin, adjustable compression, and PAS24 compliance for enhanced security.
Key Features
- No packers needed for different rebate sizes
- Fast and simple to fit
- Horizontal and vertical adjustment for precise alignment
- High weight capacity: 80kg on three hinges, 120kg on four hinges
- Durable zinc die-cast body with stainless steel pin
- PAS24 compliance for enhanced security
Technical Specifications
- Body Material
- Zinc die-cast with stainless steel pin
- Rebate Size
- 17mm - 22mm
- Compression Adjustment
- +/- 2.5mm
- Horizontal Adjustment
- +/- 5mm
- Vertical Adjustment
- +6mm / -2mm
- Weight Capacity
- 80kg on three hinges, 120kg on four hinges
- Testing
- Tested to 100,000 cycles, minimum of 240 hours salt spray testing for paint finish (exceeds BSEN 1670:2007), 480 hours for Lorica finish
- Guarantee
- 10 year mechanical guarantee
- Security
- PAS24 Capable
